New-energy motors
Protects lead wires and winding exits in traction, compressor and auxiliary motor assemblies.
WCW ELECTRICAL INSULATION PRODUCT

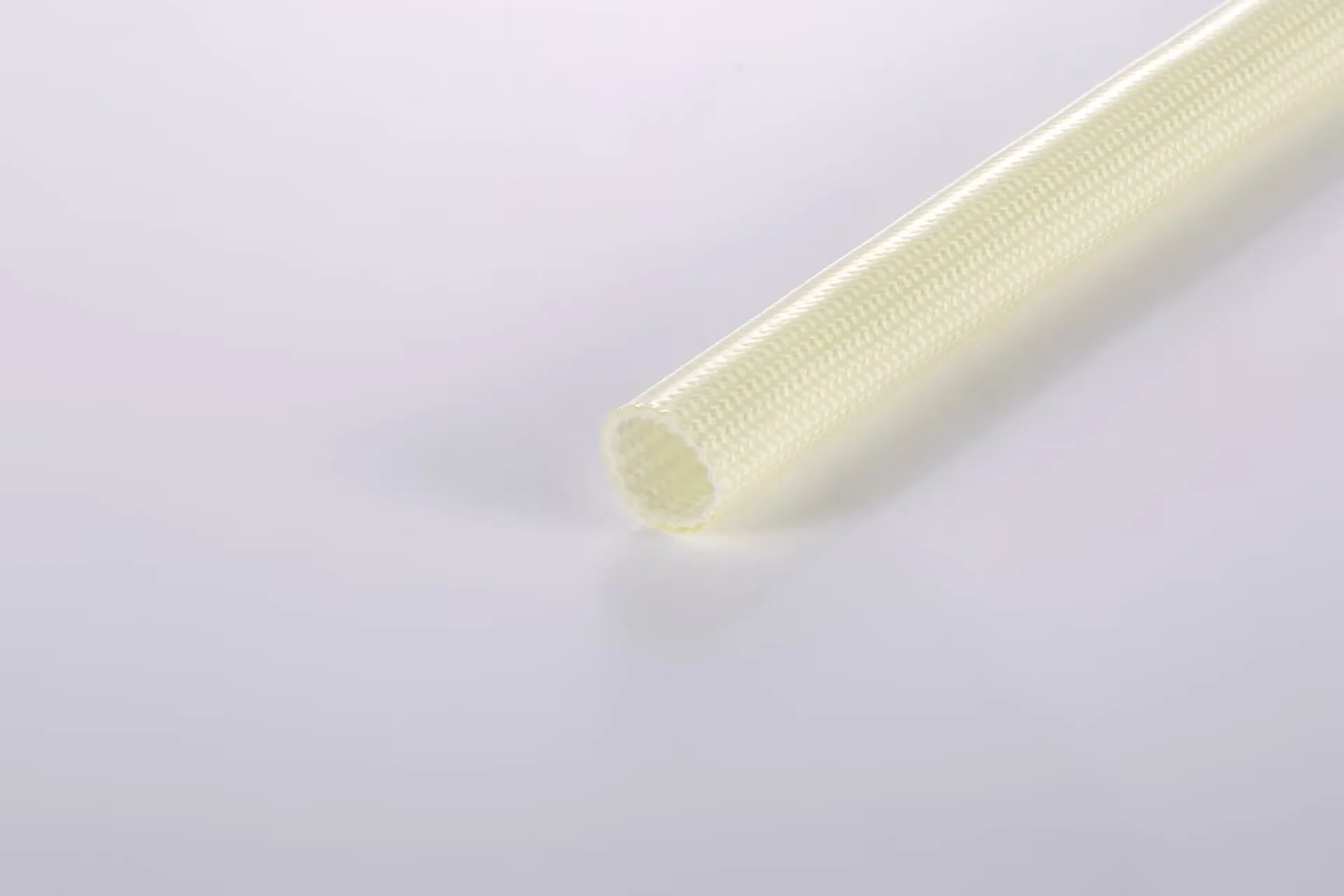

Motor Winding Insulation Sleeve
A high-dielectric insulation sleeve for new-energy and industrial motor winding exits, lead transitions and routed conductors exposed to heat, vibration, varnish, oil and assembly pressure.
APPLICATIONS
Applications
Industrial motors
Supports pumps, fans, generators and machinery motors requiring controlled thermal and dielectric insulation.
Motor lead transitions
Adds abrasion and electrical protection where winding conductors transition into flexible lead wires.
TECHNICAL DATA
Technical Specifications
Provide finished lead OD, motor thermal class, voltage, varnish or oil exposure, bend radius, color and cut length.
Thermal classes: 155°C or 200°C
Typical voltage direction: 600V
Custom ID and wall build
Flexible and oil-resistant options
Custom color and cut length
UL recognized options by construction
Published values describe available product directions. Confirm the final drawing, grade, tolerance and test method before production approval.
QUALITY DOCUMENTS
Certifications
UL recognized coated sleeving options are available under applicable WCW file references. Select the exact grade from motor thermal class, voltage, fluid exposure and validation requirements.
PROJECT SUPPORT
Datasheet & Samples
Provide finished lead OD, motor thermal class, voltage, varnish or oil exposure, bend radius, color and cut length. Include the target application, annual demand and required qualification files for a faster review.
FAQ
Product selection questions
Which sleeve is used for motor winding leads?
Acrylic, silicone resin and silicone rubber fiberglass constructions are common. The correct choice depends on the complete motor insulation system.
How should the sleeve ID be selected?
Use the finished lead or bundle OD, then validate insertion force, bend radius and tolerance with a production-representative sample.
Can WCW provide a datasheet and samples?
Yes. Send the target thermal class, voltage, dimensions and application so the documents and sample match the proposed grade.
