Motor windings
Protects motor lead transitions where thermal class, varnish compatibility and dielectric strength must be verified.
WCW ELECTRICAL INSULATION PRODUCT

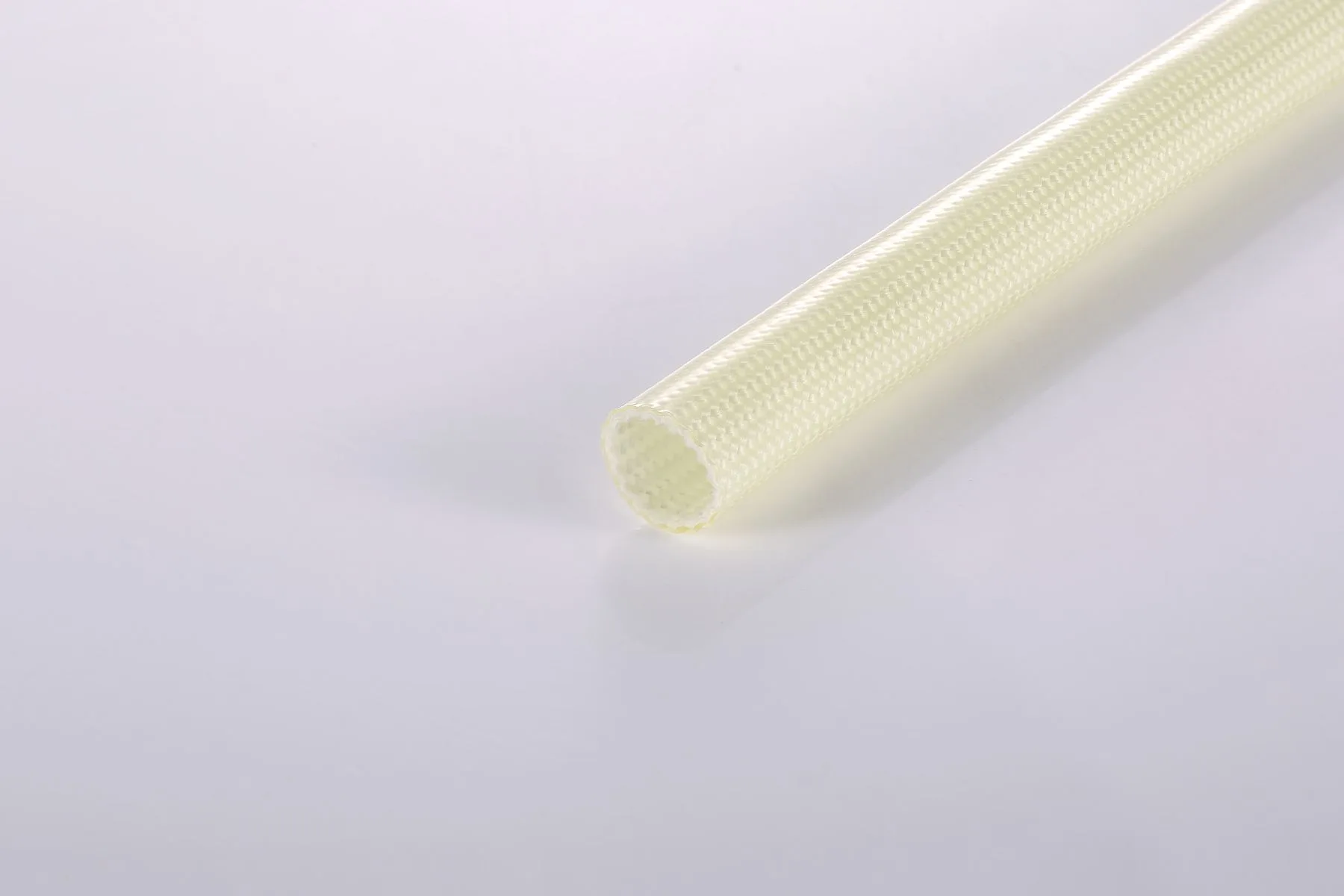

Acrylic Coated Fiberglass Sleeving
A cost-controlled electrical insulation sleeve for motor leads, transformer connections and household appliance wiring that require dielectric protection and oil-resistant performance.
APPLICATIONS
Applications
Household appliances
Insulates internal appliance wiring near heating elements, motors and electrical connections.
Transformer wiring
Provides a stable coated braid for transformer leads and coil connections in moderate high-temperature service.
TECHNICAL DATA
Technical Specifications
Provide lead-wire OD, temperature class, voltage, oil or varnish exposure, color, cut length and annual demand.
Temperature class: 155°C
Voltage rating: 600V
Typical inner diameter: 0.5-25 mm
Typical wall thickness: 0.20-0.64 mm
Oil-resistant grade direction
UL file reference: E233803
Published values describe available product directions. Confirm the final drawing, grade, tolerance and test method before production approval.
QUALITY DOCUMENTS
Certifications
Selected acrylic coated electrical sleeving constructions are covered by UL file E233803. Confirm the exact style before using UL, RoHS, REACH or IEC documentation in a customer qualification package.
PROJECT SUPPORT
Datasheet & Samples
Provide lead-wire OD, temperature class, voltage, oil or varnish exposure, color, cut length and annual demand. Include the target application, annual demand and required qualification files for a faster review.
FAQ
Product selection questions
Where is acrylic fiberglass sleeving commonly used?
It is commonly evaluated for motor winding leads, transformer wiring and household appliance insulation.
Does acrylic sleeving resist oil?
Oil-resistant grades are available, but the exact oil, temperature and exposure duration should be included in sample validation.
Can WCW provide custom ID and cut length?
Yes. Share the finished conductor diameter, tolerance and required length for a project review.
